Do you have a 1965-79 Ford F250 2wd truck with Heavy-Duty front drum brakes, or a 1968-79 F250 2wd truck with factory front disc
brakes; and you want to stop in seconds, not mintues? This is your brake kit! These are direct bolt-on kits, and utilize your factory
spindles and wheel hubs. No more i-beam swaps or using old 1970’s braking technology! We send you our Halt CNC machined
caliper brackets, OEM-spec rotors, Wilwood calipers and pads, and all the hardware necessary for an easy direct bolt-on installation.
The calipers can be purchased in grey anodized, or black or red powder coat. All PRD Design Halt Braking Systems products are
designed and manufactured in the USA!
This kit only fits 1965-79 F250 2wd trucks with the Heavy-Duty drums, and 1968-79 F250 2wd trucks with factory disc brakes. If
your truck has Standard-Duty drums, this kit will not fit. Please refer to our 2wd Standard-Duty brake kit. Call us if you do not
know what brakes you have, we can help!
*WE ONLY GUARANTEE FITMENT WITH 16×7 STOCK FORD STEEL WHEELS.
**A master cylinder designed for disc brakes IS REQUIRED for proper disc brake operation. For this kit, we offer and
recommend the Wilwood Tandem Compact Master Cylinder, 1-1/8 inch bore, kit.
***If you are keeping your rear drum brakes, you will need a Residual Pressure Valve installed in your rear brake line. Without
this valve, your rear drums will not work properly. We offer a Wilwood residual pressure valve, just add it to your order.
*If your factory disc brake truck had the original Ford OEM 2-piece hub/rotor assembly replaced with a 1-piece hub/rotor
assembly, this kit WILL NOT work for you. Our disc brake kit design requires use of the Ford OEM 2-piece wheel hubs; there
was no way around this. Call us for assistance.

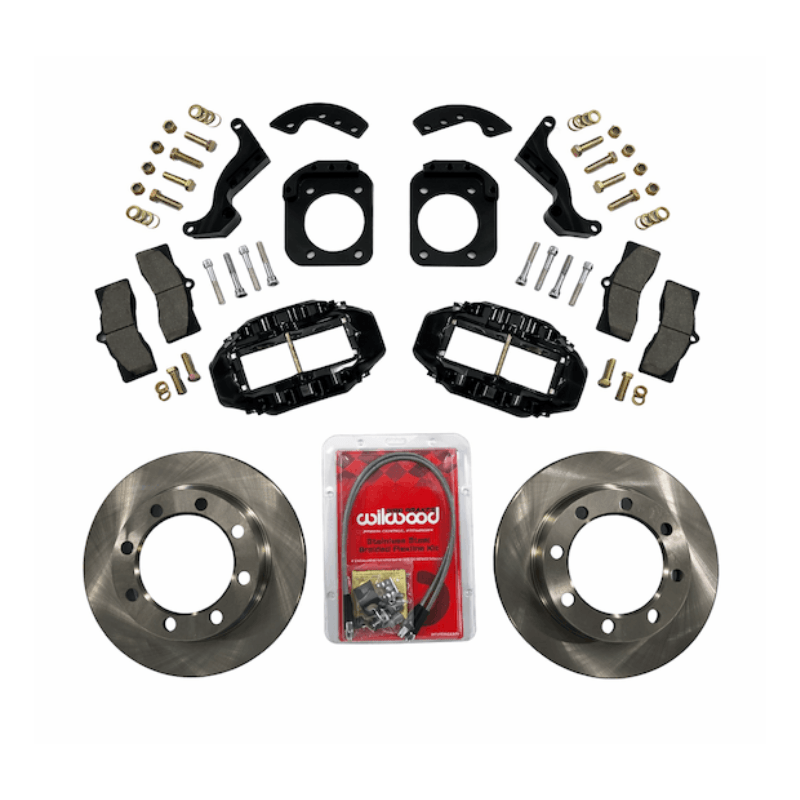

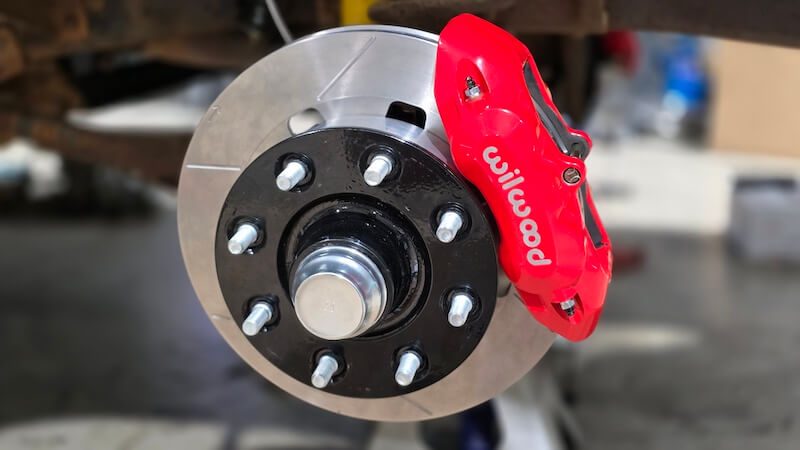

1965 – 79 F250 2-Wheel-Drive Heavy-Duty Front Drum2Disc Conversion Kit – #PRD-2WDHD-D2D-GRY,
#PRD-2WDHD-D2D-BK, #PRD-2WDHD-D2D-RD
2 PRD Halt caliper brackets
2 OEM-spec rotors

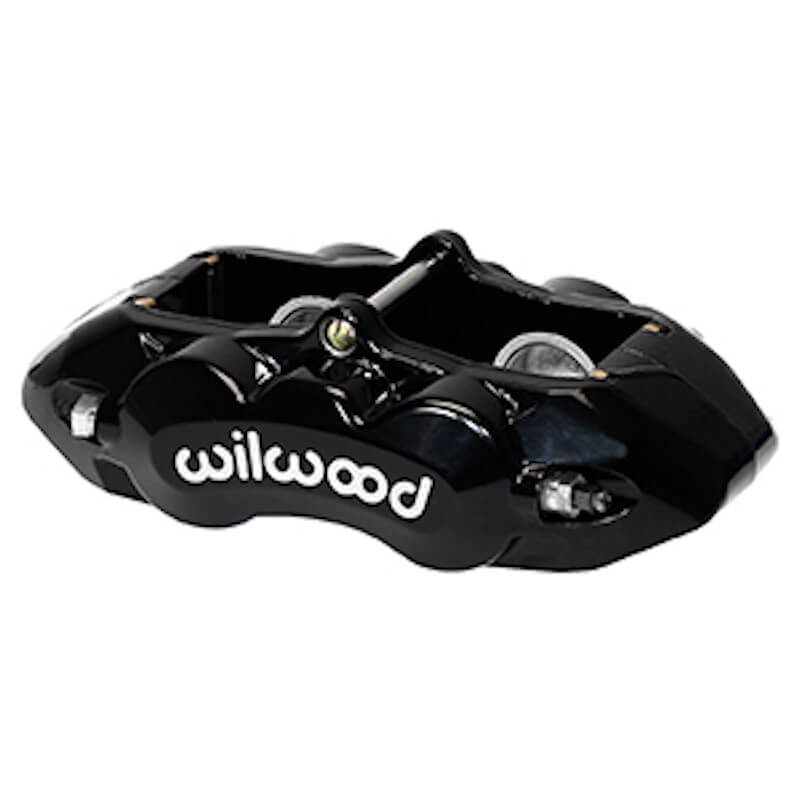

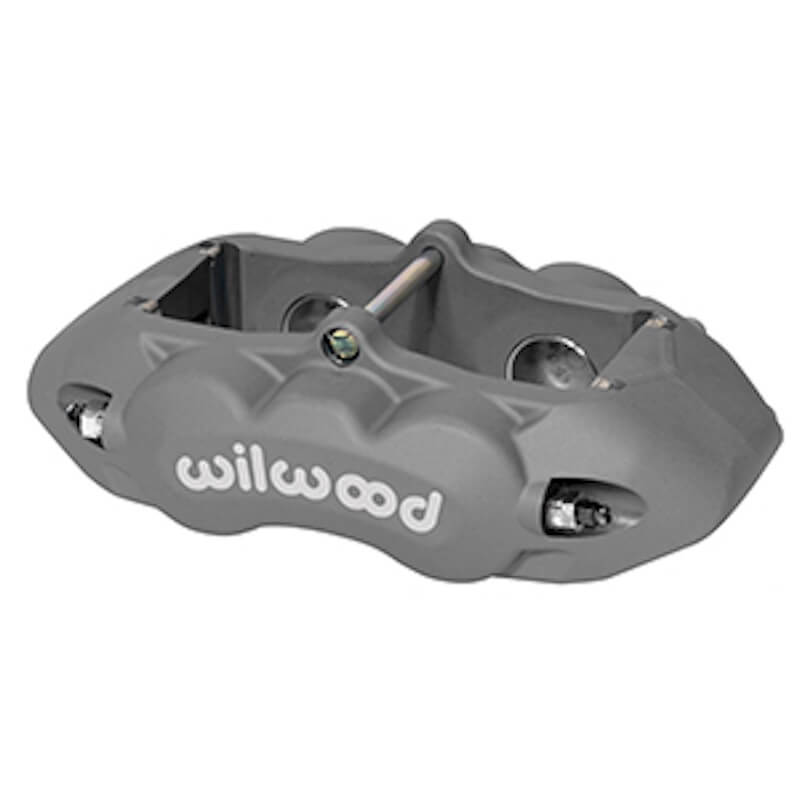

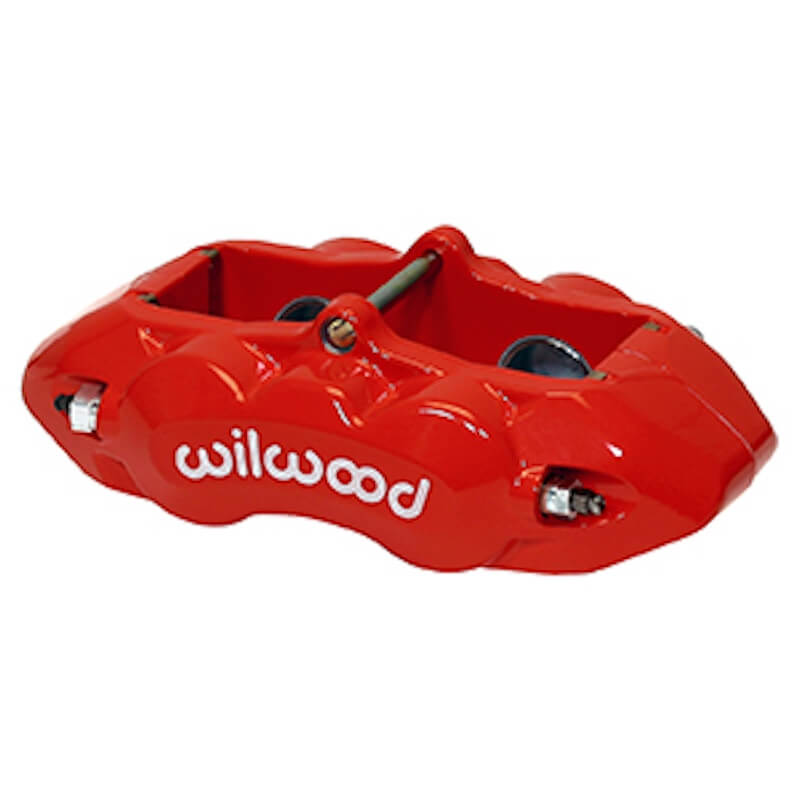

2 Wilwood 6-piston calipers (Available in Grey Anodize, or Black or Red powder coat)

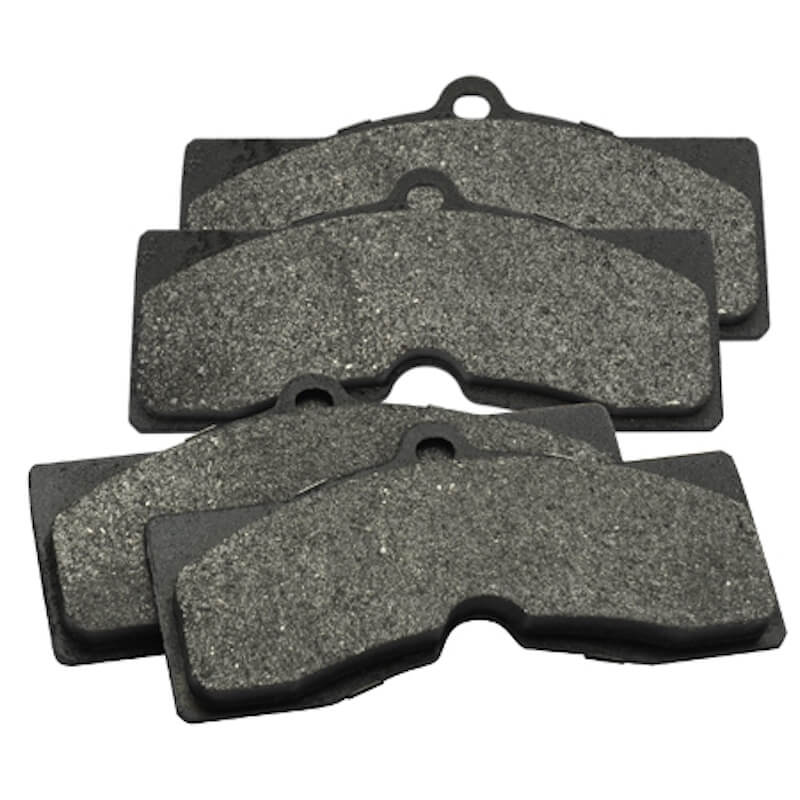

Wilwood BP-10 brake pads

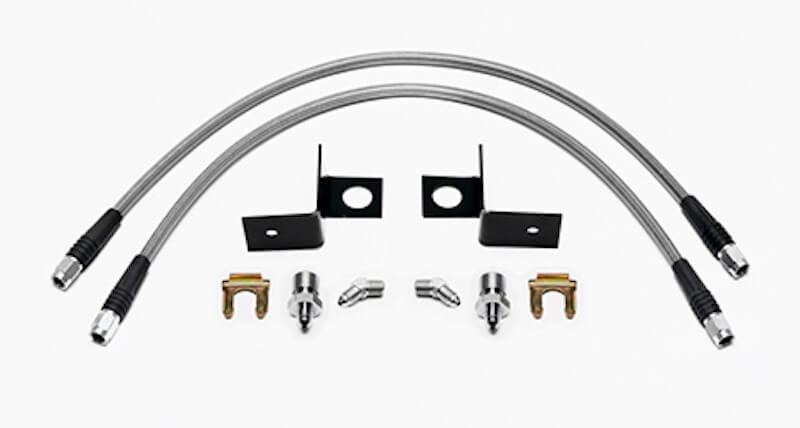

A Wilwood stainless-steel braided brake hose kit
All necessary assembly hardware
