Since we had already designed a front brake kit for a 1969 F250 build, we decided to complete the task by designing a rear Drum2Disc
kit. The results were amazing, and like our other brake kits, this one is a direct bolt-on kit that uses your factory OEM wheel hubs! We
send you our Halt CNC machined caliper brackets, OEM-spec rotors, Wilwood calipers and pads, and all the hardware necessary for
an easy direct bolt-on installation. The calipers can be purchased in grey anodized, or black or red powder coat. All PRD Design Halt
Braking Systems products are designed and manufactured in the USA!

This kit comes standard with Wilwood mechanical parking brakes, and a Wilwood parking brake cable kit. You can option for the
Wilwood electric parking brake kit. Each parking brake kit is only offered in black or red powder coat.
This kit only fits 1967-79 F250 trucks with the rear Dana 60 Heavy-Duty drum brake axle. If your truck has a rear Dana 60
Standard-Duty axle, or if your truck is pre-1967, this kit will not fit. Please refer to our 1959-1979 F250 rear Dana 60 Standard-
Duty brake kit. Call us if you do not know what axle you have, we can help!

*WE ONLY GUARANTEE FITMENT WITH 16×7 STOCK FORD STEEL WHEELS.

**A master cylinder designed for disc brakes is required for proper disc brake operation. For this kit, we offer and recommend
the Wilwood Tandem Compact Master Cylinder, 1-1/8 inch bore, kit.

2 PRD Halt caliper brackets
2 OEM-spec rotors
2 Wilwood 4-piston calipers (Available in Grey Anodize, or Black or Red powder coat)
Wilwood BP-10 brake pads
A Wilwood stainless-steel braided brake hose kit

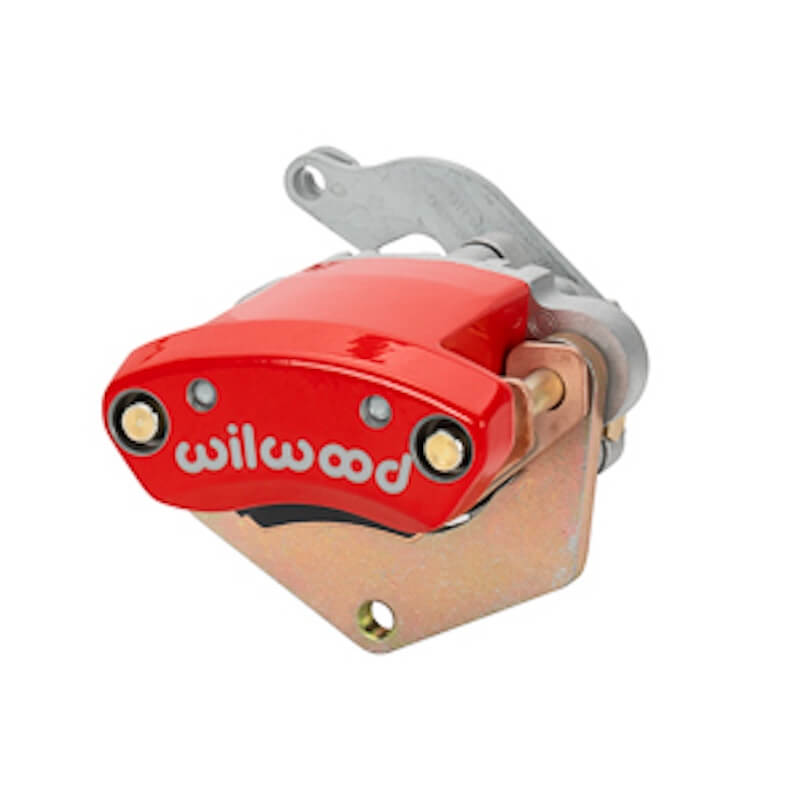

*2 Wilwood mechanical parking brake calipers w/ brake pads If selecting the Standard kit with the Mechanical Parking Brakes
*Wilwood parking brake cable kit *If selecting the Standard kit with the Mechanical Parking Brakes
* A Wilwood Electric Parking Brake Kit. Includes Electric Actuated Parking Brake Calipers & the wiring harness (Black or Red
powder coat only) *Additional Cost
All necessary assembly hardware
